Feature
Simple and fashionable appearance, meet the aesthetic requirements

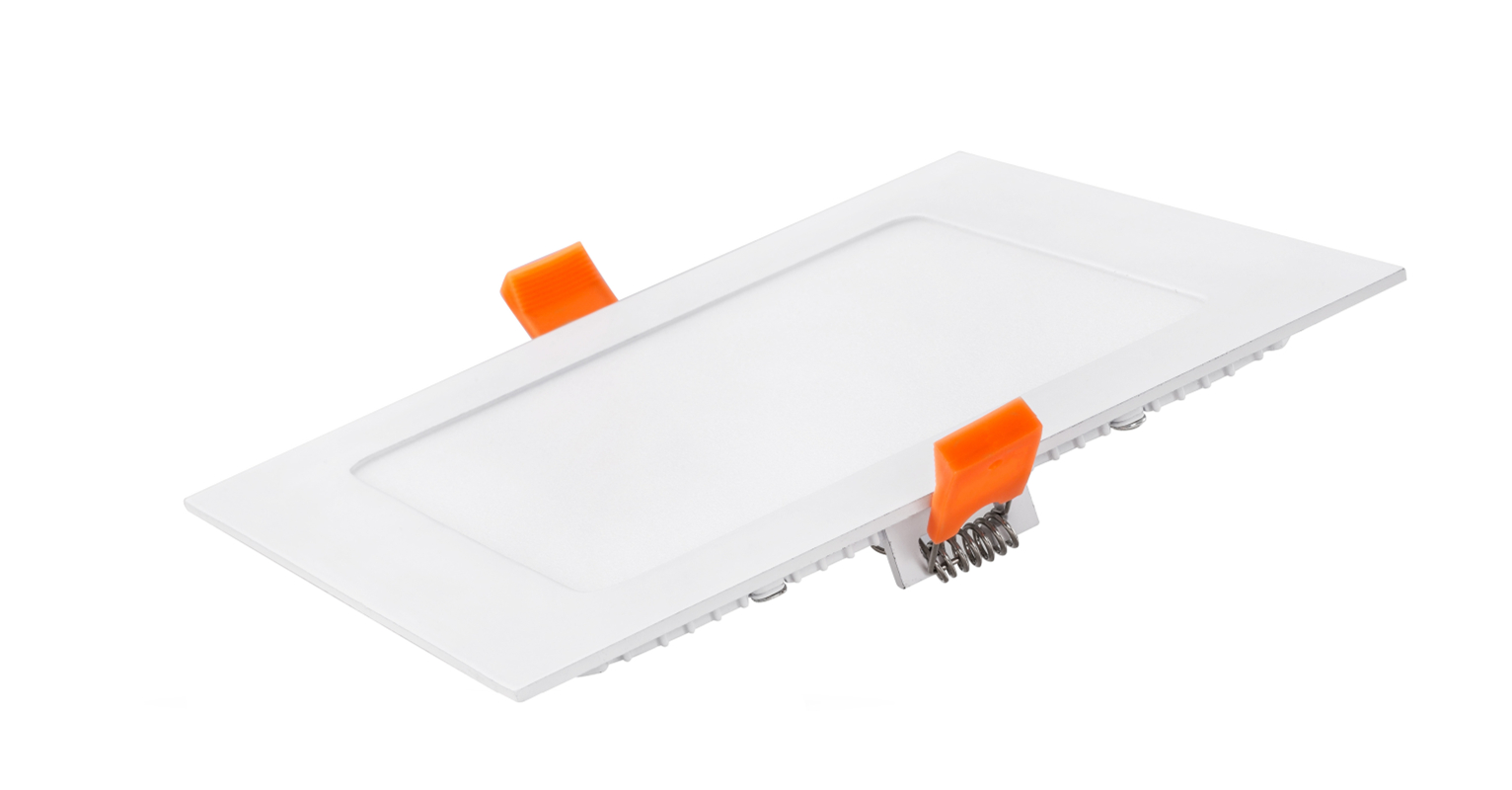

ultra-slim 12mm lamp body design, applicable to a variety of places
Super bright LM-80 Epistar LED Chip, SDCM<4,TM21, low light decay
Up to 100lm/w lighting efficiency, more energy saving
Anti glare UGR<19 lamp cover can be selected
Long lifespan, 5 years warranty,
Aluminum lamp housing+PMMA cover, uniform light effect and good heat dissipation
Multiple dimming modes are optional
The surface is smooth without scratches and stains
Multiple brands LED driver can be selected, no flicker
Parameters
| Input Voltage | 200-240V |
| Color Temperature | 2700K, 3000K, 4000K, 5000K, 6000K optional |
| Lighting Efficiency | Up to 100 LM/W |
| Color Consistency | SDCM <4 |
| Anti-Glare | UGR<19 / UGR <23 |
| CRI | >80Ra |
| Power Factor | >0.9 |
| Lamp Housing | Aluminum |
| Light Guide Plate | PMMA |
| Diffuser Plate | PMMA |
| Housing Color | White |
| Waterproof Level | IP20 / IP44 / IP65 |
| Light Transmittance | >90% |
| Lifetime | 50,000H |
| Dimmable | N / 0-10V / Triac Dim / Dali / DMX Optional |
| Installation | Embedded |
Specification
| Item | Power | Luminous Flux (lm) | Dimension (mm) | Cut-out (mm) |
| DS-CL-3W-S20 | 3W | 280 | 90*90*H12 | 70*70 |
| DS-CL-6W-S20 | 6W | 570 | 120*120*H12 | 100*100 |
| DS-CL-9W-S20 | 9W | 860 | 150*150*H12 | 130*130 |
| DS-CL-12W-S20 | 12W | 1150 | 175*175*H12 | 150*150 |
| DS-CL-15W-S20 | 15W | 1450 | 200*200*H12 | 170*170 |
| DS-CL-18W-S20 | 18W | 1750 | 225*225*H12 | 205*205 |
| DS-CL-24W-S20 | 24W | 2350 | 300*300*H12 | 280*280 |
