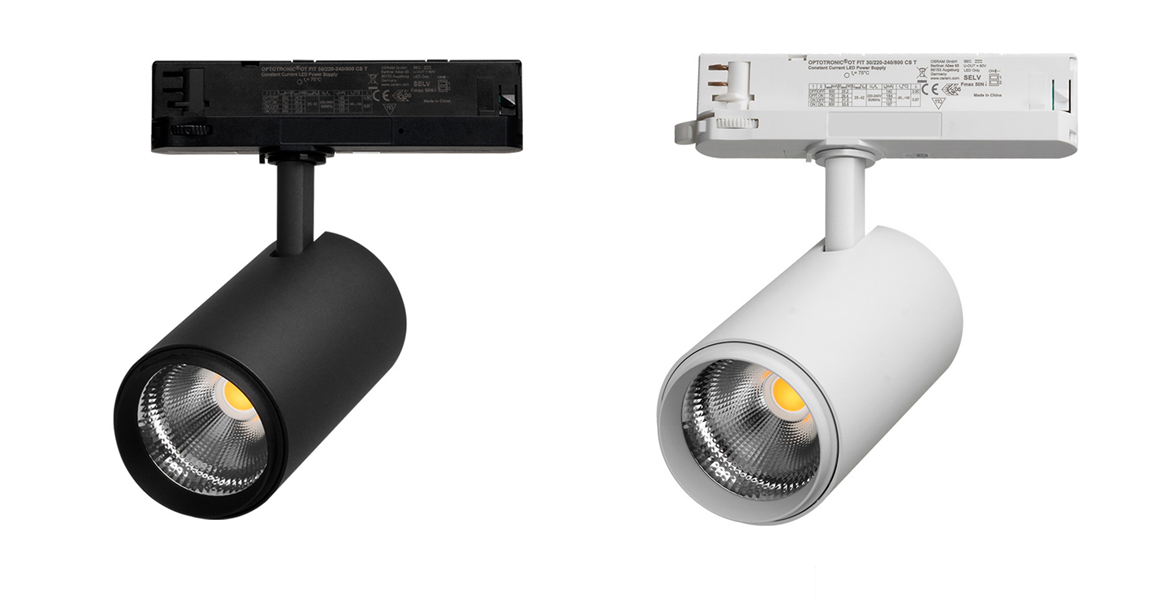

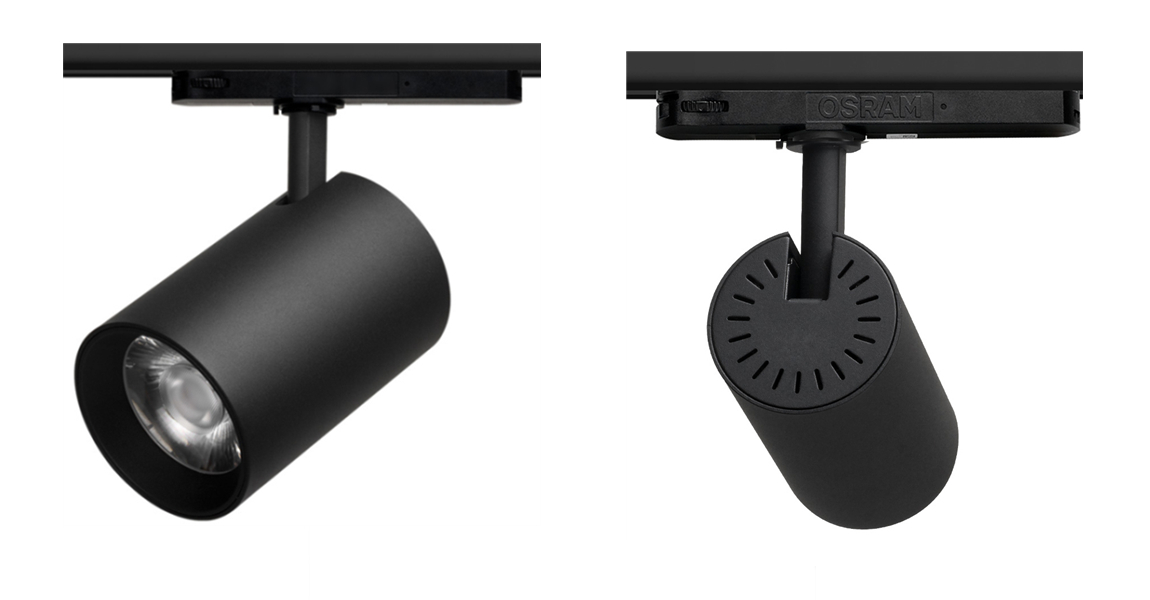

- Integrated aluminum lamp housing, more fashionable and beautiful
- 350degree adjustable horizontaly, 90degree adjustable vertical
- Global / Osram 3 phase (4 wire, 6 wire)
- Ultra low glare UGR (Lens 8-12, reflector 15-19), more eye protection
- Up to CRI 97Ra, highly restore original color
- World famous brand COB LED source: Citizen, Epistar, Osram...
- Kinds of beam angles are available
- Up to 130lm/w lighting efficiency, more energy saving
- Long lifespan, 5 years warranty
- Multiple brands LED driver can be selected, no flicker
Parameters
| Input Voltage | 200-240V |
| Color Temperature | 2700K, 3000K, 4000K, 5000K, 6000K optional |
| Beam Angle (lens) | 15° 24° 36° 60° |
| Beam Angle (Reflector) | 30° 40° 60° |
| SDCM | <3 |
| Lighting Efficiency | Up to 120 LM/W |
| Housing Color | White / Black / Silver |
| Anti-Glare | UGR lens 8-12, reflector 15-19 |
| CRI | 80Ra / 90Ra / 97Ra |
| Power Factor | >0.9 |
| Lifetime | 50,000H |
| Dimmable | N / 0-10V / Triac Dim / Dali Optional |
| Adapter | 3 phase (4 wire, 6 wire) |
Specification
| Item | Power |
LuminousFlux (lm) |
LED+Radiator (mm) |
| DS-RL12W- COB- D | 12W | 1000-1200 | Φ55*L120 |
| DS-RL20W-COB-D | 20W | 2200-2400 | Φ65*L125 |
| DS-RL30W-COB-D | 30W | 3200-3400 | Φ85*L150 |
| DS-RL40W-COB-D | 40W | 4400-4800 | Φ100*L150 |
