Feature

•

• Clear cover, middle frosted cover, frosted cover are alternative

• COB / SMD LED Chip are optional,

• World famous brand LED source: Citizen, Epistar

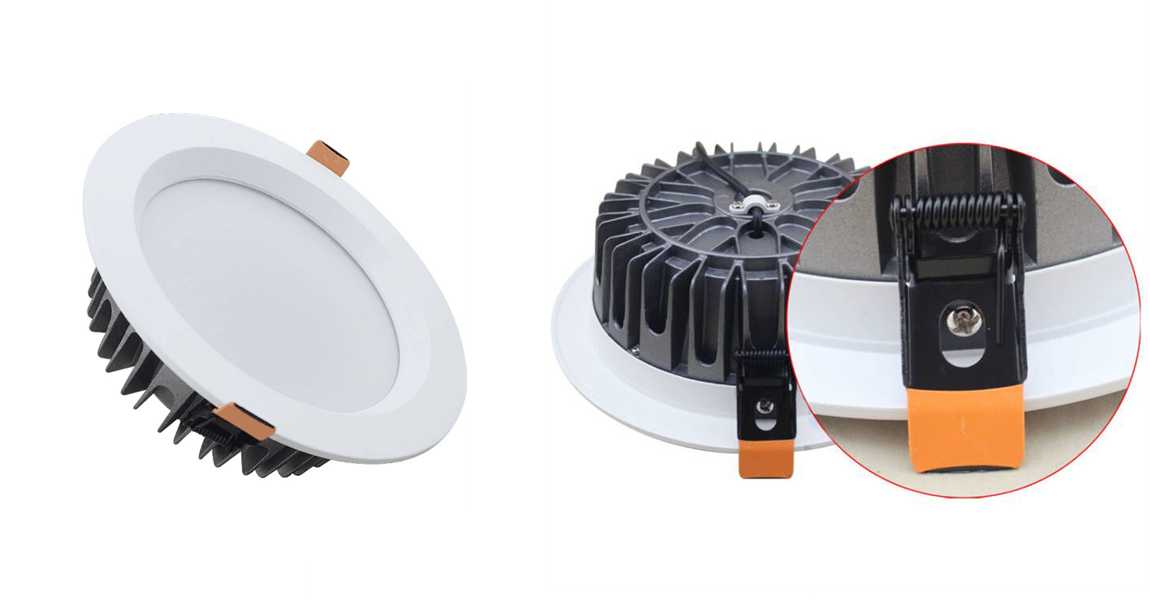

• Die-casting aluminum lamp housing, excellent heat dissipation

• High luminous efficiency 100-110lm/w

• Simple and fashionable appearance, meet the aesthetic requirements

• Long lifespan, 5 years warranty

• Multiple brands LED driver can be selected, no flicker

•

• Parameters



  Input Voltage	AC200-240V
  Color Temperature	2700K, 3000K, 4000K, 5000K, 6000K optional
  Lighting Efficiency	100-110 LM/W
  Anti-Glare	UGR <21
  CRI	80Ra  / 90Ra / 97Ra
  Power Factor	>0.95
  Lifetime	50,000H
  Waterproof Level	IP44
  Dimmable	N / 0-10V / Triac Dim / Dali / DMX
  Installation	Recessed
  Adjustable	Fixed
  Housing Materials	Die-casting aluminum alloy



  Specification



  Item	Power	Luminous Flux (lm)	Dimension    (mm)	Cut-out (mm)	Beam Angle
  DS-CL-7W-1	7W	700-710	D110*H50	95	60°/ 110°
  DS-CL-12W-1	12W	1200-1300	D135*H50	115	60°/ 110°
  DS-CL-20W-1	20W	2000-2100	D190*H60	180	60°/ 110°
  DS-CL-30W-1	30W	3000-3100	D230*H60	200	60°/ 110°
