Feature
Adopts the flip-chip packaging process,package the chip on the PCB, good heat dissipation,free bending,
The light is uniform and bright, and in a line, without spot and shadow
Many kinds of colors are optional
High brightness LED source is adopted
Double-faced soft FPC with 3 oz cooper layer
Stronger original 3M back adhesive
The length can be cut according to requirements

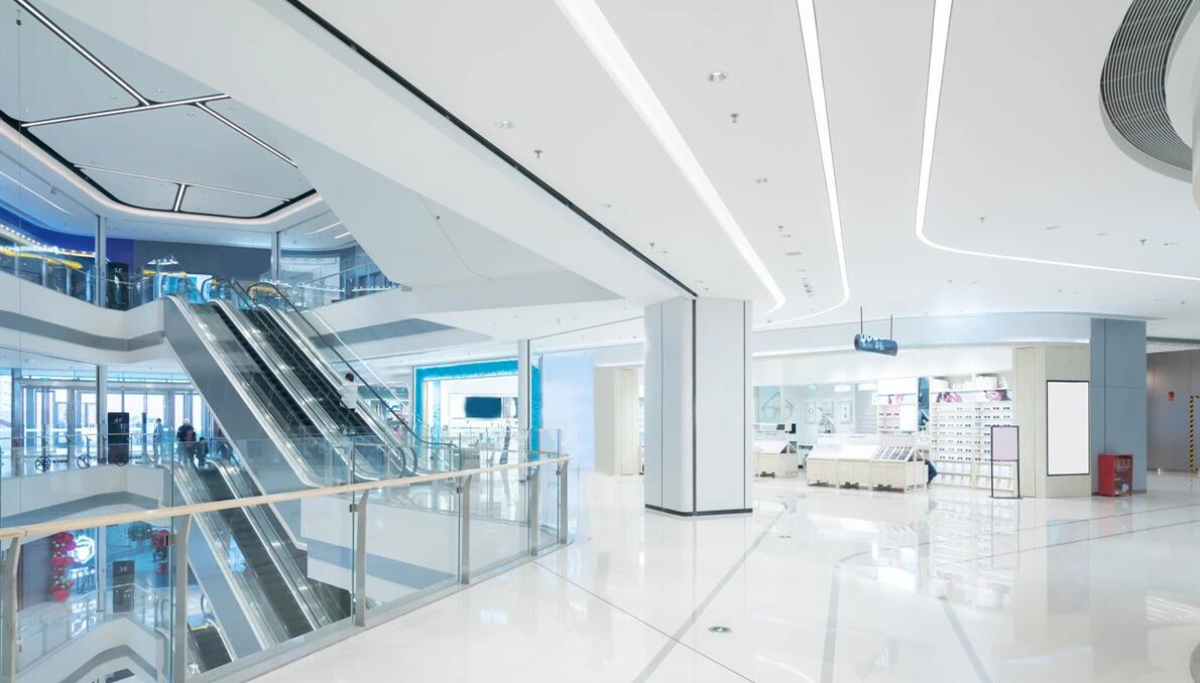

Suitable for indoor and outdoor places
Parameters
| Input Voltage | DC24V |
| LED Chip | COB LED Chip |
| Waterproof Level | IP20, IP65, IP67, IP68 |
| Color | Single color 、RGB |
| Beam Angle (lens) | 180° |
| PCB Color | White / Black |
| Adhesive | 3M |
| Operation temperature | -25° - 60° |
| Warranty | 3-5 years |
Specification
| Item | LEDs Quantity | Power | LuminousFlux | PCB Width | Row | Each Cut Length |
| DS-FL-COB-320-90-8MM | 320 leds/m | 8W | 800 lm/m | 8mm | Single Row | 100mm |
| DS-FL-COB-336-80-8MM | 336 leds/m | 8W | 720 lm/m | 8mm | Single Row | 62.5mm |
| DS-FL-COB-504-80-10MM | 504 leds/m | 12W | 1080 lm/m | 10mm | Single Row | 41.67mm |
| DS-FL-COB-528-90-10MM | 528 leds/m | 15W | 1500 lm/m | 10mm | Single Row | 45.45mm |
| DS-FL-COB-528-90-8MM | 528 leds/m | 10W | 1000 lm/m | 8mm | Single Row | 45.45mm |
